T9type Track

The complete T9type Track manual for XFORMER — teletype scripting on a sequencer track, from the two track types and how patterns/scenes work, through the full keyboard map and I/O grid, to the Performer-only op families and a step-by-step tutorial.

1 · Overview & track types

The T9type Track puts a full teletype on a sequencer track. It gives you:

• USB keyboard support (see Keyboard shortcuts).
• CV outputs freely mapped to XFORMER's CV outputs.
• Gate outputs (TR) freely mapped to XFORMER's gate outputs.
• Trigger inputs (TI-TR) to fire scripts.
• CV inputs (TI-IN and TI-PARAM) from XFORMER's CV inputs.
• Integration with the project clock system.
• Pattern and variable storage.
• Performer-only CV modulation ops: per-CV envelopes (E.*), per-CV LFOs (LFO.*), and the G.* modulator.

What you actually get depends on which of the two track types you load. They share the same parser, the same op set, and the same I/O grid; they differ in how much program lives on the track and how the pattern selector is used.

TT2 (full) TT2 — TrackMode::TeletypeV2

The classic full teletype on a track. One large program:

• 10 scripts: 8 trigger scripts + Metro (M) + Init (I).
• 8 trigger inputs, 8 CV outputs + 8 gate outputs.
• 2 CV-input mappings (IN, PARAM) plus the X/Y/Z/T scratch inputs (see I/O setup).
• 4 tt-pattern banks of 64 steps each (the P/PN data).
• Live command eval (type and run from LIVE view) and SD scene save/load.

Use full TT2 when you want one big patch with the whole teletype surface available.

TT2-Mini MINI — TrackMode::TeletypeMini

A compact variant that stores 4 scenes in the track and switches between them with the w-pattern selector (see Scenes). Each scene is a small, complete program:

• 3 scripts: Script 1 + Script 2 + Metro. No dedicated Init slot — Script 1 doubles as the boot/init script: it runs once at track start and is also the TI-TR1 trigger script.
• 2 trigger inputs.
• 8-deep delay queue (DEL).
• 4 scenes, each with its own 3 scripts, its own 4 tt-patterns × 64 steps, and its own I/O config.

Live command eval and SD scene save/load are not available on Mini (v1). Use Mini when you want several small, switchable scenes on one track.

When to use which

2 · w-patterns vs tt-patterns

How the w-pattern selector is used differs by track type:

• TT2-Mini: the w-pattern selects the active scene — scene = w-pattern % 4.
• Full TT2: there is one scene, so the w-pattern is simply the track's single program slot.

3 · Scenes (TT2-Mini)

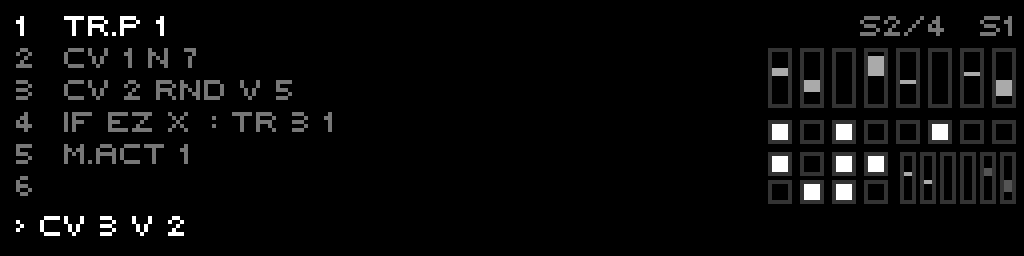

A scene is a complete program: its own 3 scripts (Script 1 + Script 2 + Metro), its own 4 tt-patterns × 64 steps, and its own I/O config. A TT2-Mini track holds 4 scenes. All four scenes share one runtime.

Seamless switching

Changing the w-pattern retargets the active scene with no reset. The shared runtime — variables, the delay queue, and the metro tempo + phase — carries across the switch. Scripts simply start running from the new scene's program.

Put per-scene config in the Metro script

Transport stop

A transport stop (reset) is a partial reset: it clears outputs, the delay queue, and the metro accumulator, and re-runs the boot script — but it does not wipe variables. (Full TT2 behaves the same way.)

4 · Keyboard shortcuts

Script View — function keys

Script View — step keys (default mode)

Each step key cycles through characters: digit → two letters.

Script View — Shift + step (symbols & commands)

Script View — Page + step (clipboard & edit)

Script View — navigation & encoder

USB keyboard (Script View)

Connect a USB keyboard via the USB Host port. Letters are auto-uppercased for the teletype parser.

Pattern View — keys & encoder

USB keyboard (Pattern View)

5 · I/O setup

If your T9type track is new, set up its I/O first so scripts can see the correct inputs/outputs.

1. Select the track. Press the Track button for the slot where teletype is loaded.
2. Open the Track page (I/O list). Press Page+Track to open the track list model.

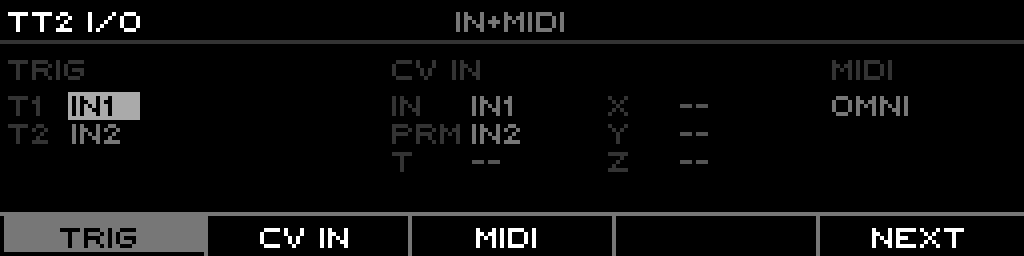

3. Map inputs. TI-TR1..TI-TR4 assign trigger sources; TI-IN picks the CV source for IN; TI-PARAM for PARAM; TI-X / TI-Y / TI-Z / TI-T optional CV sources for the X/Y/Z/T variables. CV inputs here are direct hardware inputs (no routing needed).
4. Map outputs. TO-TRA..TO-TRD map trigger outputs A–D to gate outputs; TO-CV1..TO-CV4 map CV outputs 1–4 to CV outputs. F5 (SYNC OUTS) fills TO-CV/TO-TR from the Layout-owned outputs (does not overwrite unmatched slots). A ! means the slot points at an output not owned by this track in Layout.
5. (Optional) ranges/offsets. CV1 RNG/OFF .. CV4 RNG/OFF set per-output voltage range and offset.
6. Trigger input presets. F1 (TI PRESET) cycles TI-TR presets: CV1-4, G1-4, G5-8, L-G1-4, L-G5-8, None.

Layout prompt for T9type tracks

Committing a track mode change to teletype from the Layout page prompts ASSIGN OUTS i-i+3?. Answering Yes assigns both gate and CV outputs in that range to the track (no wrap beyond output 8).

Track LED note: in teletype mode, TR activity captures the track LEDs regardless of CV/gate output mapping. TR1 uses the assigned track LED; TR2–TR4 use the next track LEDs (no wrap).

Script View I/O grid

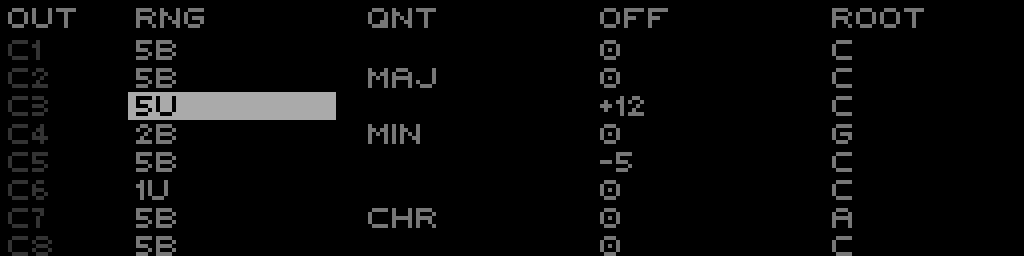

Script View shows a real-time I/O grid in the top-right corner. Five sections:

Teletype panic

Page+Track 6 → TT PANIC instantly silences all teletype tracks: disables metro (M.ACT 0), clears pending DEL commands, clears TR pulses and forces gates low, zeroes all teletype CV outputs, stops E.*/LFO.*/G.* modulation, and clears Geode routing/phase.

Default scripts on a new track

When a track has no scripts, it seeds two defaults:

S0       M.ACT 1               # enables metro
M        CV 1 N 48 ; TR.P 1    # C3 on CV1 + trigger pulse

6 · Performer-added ops beyond stock teletype

These op families are XFORMER additions and do not exist in stock teletype. For full per-op detail see docs/new-teleops.md. (Stock-teletype ops live in the upstream teletype/tl-manual.md.)

CV modulation — LFO (LFO.*)

Per-CV low-frequency oscillator with waveform, amplitude, fold, and offset control.

LFO.R 1 2000   # 2s cycle
LFO.W 1 15     # triangle → saw
LFO.A 1 80     # amplitude
LFO.F 1 0      # no fold
LFO.O 1 8192   # offset/bias
LFO.S 1 1      # start

Defaults: LFO.R=1000 ms, LFO.W=0, LFO.A=100, LFO.F=0, LFO.O=8192, LFO.S=0.

CV modulation — Envelope (E.*)

Per-CV attack/decay envelope with target/offset.

E.O 1 0        # offset/baseline
E 1 12000      # target (raw 0-16383)
E.A 1 10       # attack ms
E.D 1 80       # decay ms
E.T 1          # trigger envelope

E.R 1 1        # pulse TR1 at end of rise
E.C 1 2        # pulse TR2 at end of cycle
E.L 1 4        # loop 4 cycles (0 = infinite)

Defaults: E=16383, E.A=50 ms, E.D=300 ms, E.O=0, E.L=1.

CV modulation — Geode (G.*)

Polymetric rhythm generator with per-voice timing control.

G.R 1 0        # mix to CV1
G.V 1 7 8      # voice 1: 7-div, 8 repeats (immediate trigger)

Defaults: G.TIME=8192, G.TONE=8192, G.RAMP=8192, G.CURV=8192, G.RUN=8192, G.MODE=0, G.O=0, G.BAR=4, tune ratios 1/1..6/1. Aliases: G.T/G.I/G.RA/G.C/G.N/G.M/G.B/G.L. Compound: G.S t i n sets TIME/TONE/RUN (no trigger). When transport is stopped, Geode free-runs using the last known bar duration (defaults to 120 BPM if none).

BUS routing

BUS is a shared CV bus (4 slots) that lets teletype modulate other tracks without using hardware CV outputs. Set BUS 1 X in a script, then in the Routing page create a route with source BUS 1 and target Transpose (or any track target). BUS is global — multiple teletype tracks can read/write the same slot directly without routing.

TV — shared variable bank

Shared integer variable bank (16 slots, TV 0..TV 15) that lets teletype tracks pass values to each other. TV i reads slot i; TV i v writes it (int16).

TV 0 ADD TV 0 1    # track A: shared counter in its metro
CV 1 N TV 0        # track B: read the counter

BAR — tempo-locked modulation

Read-only opcode returning position within the current musical bar (0-16383), auto-adjusting to the project time signature. Zero overhead (reads the already-computed measure fraction), updates at 192 PPQN.

CV 1 V BAR                # 0→10V ramp over each bar
CV 1 V BAR 4              # ramp spanning 4 bars
CV 2 V SUB BAR 8192       # bipolar -5V..+5V (centered)
IF GT BAR 8192: TR.P A    # pulse only in 2nd half of bar

Transport & tempo — WR / W.ACT / WBPM

IF WR: TR.P A     # WR = 1 when playing, 0 when stopped
W.ACT 1           # start    (0 = stop, 2 = pause)
X WBPM            # read current BPM
WBPM.S 120        # set tempo (1-1000 BPM, direct value)

Timing helpers — WMS / WTU

Return tempo-derived durations in milliseconds; n/m clamp to 1-128.

X WMS       # 1/16 note in ms
X WMS 16    # one bar in 4/4
X WTU 3     # beat / 3 (triplet)
X WTU 7 2   # 2 * (beat / 7)

Note-step access — WNG / WNN

Per-step gate and note access for Note tracks (track 1..8, step 1..64). Operate on the playing pattern; non-Note tracks return 0 / do nothing.

WNG t s      # get gate (0/1); WNG t s v sets it
WNN t s      # get note 0..127; WNN t s v sets it
WNG.H t      # gate at current gate step
WNN.H t      # note at current note step

Cross-track TT2 — WPN / WS

Reach into another TT2-family track's patterns and scripts (track 1-based). These are to TT2 targets what WNG/WNN are to Note tracks. Works full↔full, full↔Mini, Mini↔Mini.

WPN t b i      # get cell i of bank b on track t's active program
WPN t b i v    # set that cell to v
WS t n         # trigger script n (1-based) on track t, with t installed as host

WPN 3 0 0 60   # track 3, bank 0, step 0 := 60
WS 3 1         # run track 3's script 1

Route & pattern readback — RT / WP

CV 1 V RT 1            # mirror Route 1 source (pre-shaper, 0-16383)
CV 1 N SCALE WP 1 1 16 60 75   # map track 1's w-pattern 1-16 to notes
IF EQ WP 1 5: TR.PULSE 1       # trigger when track 1 on pattern 5
WP.SET 1 2            # force track 1 to pattern 2 (1-based)

WP i returns the 1-16 pattern index of track i (1-8); invalid tracks return 0. Read-only getter; settable only via WP.SET.

tt-pattern ops — math / analysis / randomize

Process the active pattern range P.START..P.END; PN.* variants target a specific pattern.

P.PA 100        # shift all steps +100  (P.PS/P.PM/P.PD/P.PMOD = sub/mul/div/mod)
P.SCALE 0 16383 48 72   # remap values to MIDI range
X P.SUM         # density (P.AVG/P.MINV/P.MAXV)
I P.FND 0       # find first zero
RND.P 0 4095    # randomize working pattern (RND.PN 2 ... targets pattern 2)

Trigger divider & width — TR.D / TR.W

TR.D 1 2     # every other pulse on TR1
TR.W 1 50    # 50% width based on post-div interval
TR.W 1 0     # disable width mode (back to TR.TIME)

Signal generation

Algorithmic generators (P.*)

Fill the active tt-pattern from an algorithm.

Rhythm logic

Pattern transforms (P.*)

Operate on the active tt-pattern range.

Timing / phase

CV mapping

SuperCollider-style mapping curves.

Control flow

7 · Tutorial

Intended for intermediate teletype users. Assumes basic teletype syntax, familiarity with the XFORMER interface, and CV/gate concepts.

1. First script — toggle a gate. Toggles gate output A each time the trigger input fires.

   TR.TOG A

2. Add CV output. Toggle gate A and set CV 1 to 5 V.

   TR.TOG A
   CV 1 V 5

3. Use variables. Increment X, drive CV 1 from it, toggle gate A.

   X ADD X 1
   CV 1 V X
   TR.TOG A

4. Basic pattern usage. CV 1 to the next note in the pattern on each trigger.

   CV 1 N P.NEXT

5. Load pattern values (LIVE mode). A 4-step pattern of semitone offsets.

   P.PUSH 0
   P.PUSH 12
   P.PUSH 7
   P.PUSH 5
   P.L 4

6. Multiple patterns. Build pattern 1, then read it from a script.

   P.N 1
   P.PUSH 0
   P.PUSH 2
   P.PUSH 4
   P.PUSH 5
   P.L 4

   CV 1 N PN.NEXT 1   # in your script: next value from pattern 1

7. EVERY for clock division.

   EVERY 2: TR.P A
   EVERY 4: TR.P B
   CV 1 V RAND 5

8. Conditional logic with IF.

   IF GT X 5: CV 1 V 5
   IF LTE X 5: CV 1 V 0
   X ADD X 1
   TR.TOG A

9. Loops with L.

   L 1 4: TR.P I       # pulse gates 1-4 in sequence
   CV 1 N RAND 24      # random note in 2-octave range

10. Clock-based timing. In Clock mode M/M!/M.A are derived from tempo/div/mult and read-only (edits show "Clock Mode").

    M.ACT 1             # enable metro
    M 500               # 500 ms (120 BPM) [MS timebase only]
    M.A 500             # set all teletype metros
    M.ACT.A 1           # enable metros on all teletype tracks
    M.RESET.A           # reset all teletype metro timers

11. Metro script. Runs at the metronome interval.

    CV 2 V DRUNK
    DRUNK.WRAP 1

12. CV inputs & scaling.

    CV 1 V IN
    CV 2 V PARAM
    X SCALE 0 16383 0 10 IN   # scale IN to 0-10V
    CV 1 V X

13. Pattern manipulation & ranges.

    P.I ADD P.I 2       # skip 2 steps
    CV 1 N P.HERE       # current pattern value
    P.START 2
    P.END 6
    P.WRAP 1            # wrap within the range

14. Randomness.

    PROB 50: TR.P A     # 50% chance to pulse A
    CV 1 V RRAND 2 8    # random voltage 2-8V
    CV 1 V DRUNK
    DRUNK.MIN 0
    DRUNK.MAX 16383

15. MIDI (Performer-specific).

    MI.NV               # latest MIDI note as voltage
    MI.CCV              # latest MIDI CC as voltage
    CV 1 V MI.LNV

16. Delays & stacks.

    TR.P A
    DEL 100: TR.P B     # B 100ms after A
    DEL 200: TR.P C

    S: CV 1 V 5         # stack commands
    S: TR.P A
    S.ALL               # execute the stack

17. Scripts as functions ($F).

    # Script 1 returns the square of X:
    * X X
    # Caller:
    A $F 1              # A = X squared

    # $F1 / $F2 pass 1 or 2 parameters via I1/I2:
    FR + I1 I2          # Script 1
    A $F2 1 3 4         # A = 7

18. Queue smoothing.

    Q CV 1              # push current CV 1
    Q.N 4               # queue length 4
    CV 2 V Q.AVG        # CV 2 = average of queue

19. Complete pattern sequencer.

    # Script 1 (triggered by input):
    CV 1 N P.NEXT
    TR.P A
    X ADD X 1
    MOD X 8
    EQ X 0
    PROB 75: SCRIPT 2

    # Script 2 (called conditionally):
    CV 2 V RAND 10
    TR.P B
